Mechanics Tools

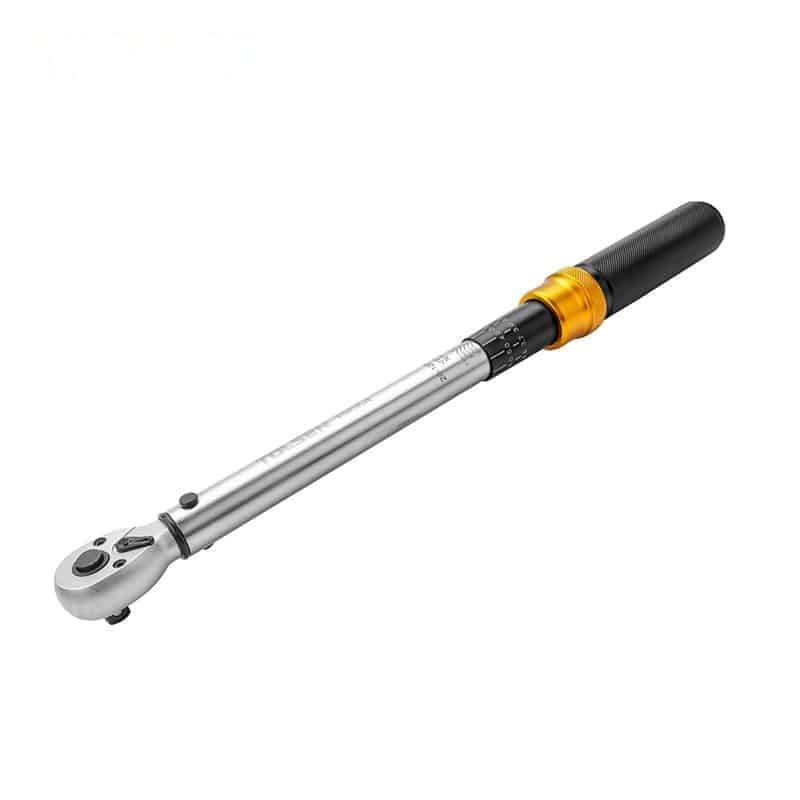

Micrometer Torque Wrench with Reversible Ratchet (Industrial)

Model No.: 19500

In accordance with ISO 6789
Release accuracy tolerance ±3% of scale value
The reversible with square drive and integrated lever-change reversibleratchet function for controlled clockwise tightening
Release signal when the value is reached
High-quality steel tube, chrome-plated surface with scales
Bi-color aluminum handle
Packing: BMC with color sleeve

Specifications

Size	Length	Stock No	Qty Carton	Torquerange
1/4″	240mm	19500	12	1-5 N·m
3/8″	240mm	19505	12	5-25 N·m
1/2″	275mm	19510	12	10-50 N·m
1/2″	503mm	19513	6	400-200 N·m
3/4″	1225mm	19522	4	200-1000 N·m
1″	945mm	19525	4	100-500 N·m
1″	1225mm	19527	4	200-1000 N·m
9x12mm	260mm	19531	12	10-50 N·m
1/4″	210mm	19660	6	1-6 N·m/8.9-53.1 in.lbs.
1/4″	240mm	19661	6	5-25 N·m/44.3-221.4 in.lbs.
3/8″	310mm	19663	6	10-60 N·m/88.6-531.4 in.lbs.
3/8″	420mm	19664	6	20-120 N·m/14.8-88.6 ft.lbs.
1/2″	420mm	19666	6	20-120 N·m/14.8-88.6 ft.lbs.
1/2″	510mm	19667	6	40-220 N·m/29.5-162.4 ft.lbs.
1/2″	560mm	19668	6	60-330 N·m/44.3-243.6 ft.lbs.
3/4″	1010mm	19669	2	100-600 N·m/73.8-442.8 ft.lbs.
3/4″	1210mm	19670	2	160-800 N·m/118.1-590.4 ft.lbs.
1″	1825mm	19671	2	240-1200 N·m/177.1-885.7 ft.lbs.
1″	1825mm	19672	2	300-1500 N·m/221.4-1107.1 ft.lbs.
150mm,6"	-	15308	60	-
200mm,8"	-	15309	36	-
250mm,10"	-	15310	24	-
300mm,12"	-	15311	18	-
150mm, 6"	-	15001	96	-
200mm, 8"	-	15002	48	-
250mm, 10"	-	15003	36	-
300mm, 12"	-	15004	24	-
375mm, 15"	-	15005	16	-
450mm, 18"	-	15006	12	-
150mm,6" 200mm,8" 250mm,10"	-	15007	-	-
8x9mm	-	17021	96	-
10x11mm	-	17022	96	-
12x13mm	-	17023	72	-
14x15mm	-	17024	60	-
16x18mm	-	17025	48	-
17x19mm	-	17026	48	-
9-32mm	-	15282	24	-
8mm	-	16308	160	-
9mm	-	16309	160	-
10mm	-	16310	160	-
11mm	-	16311	160	-
12mm	-	16312	160	-
13mm	-	16313	160	-
14mm	-	16314	160	-
15mm	-	16315	160	-
16mm	-	16316	160	-
17mm	-	16317	120	-
18mm	-	16318	120	-
19mm	-	16319	120	-
3/8"	-	15391	-	-
1/4"	-	15118	30	-
3/8"	-	15119	20	-
1/2"	-	15120	20	-
